S.N.
|
Subject
|
Specification no
|
DRG. No
|
|
1.
|
Driving axle (front) of Unimat
(Part no. CU-61-8801)
|
|
|
|
2.
|
Driving axle (back) of Unimat
(Part no. UD-62-4901)
|
|
|
|
3.
|

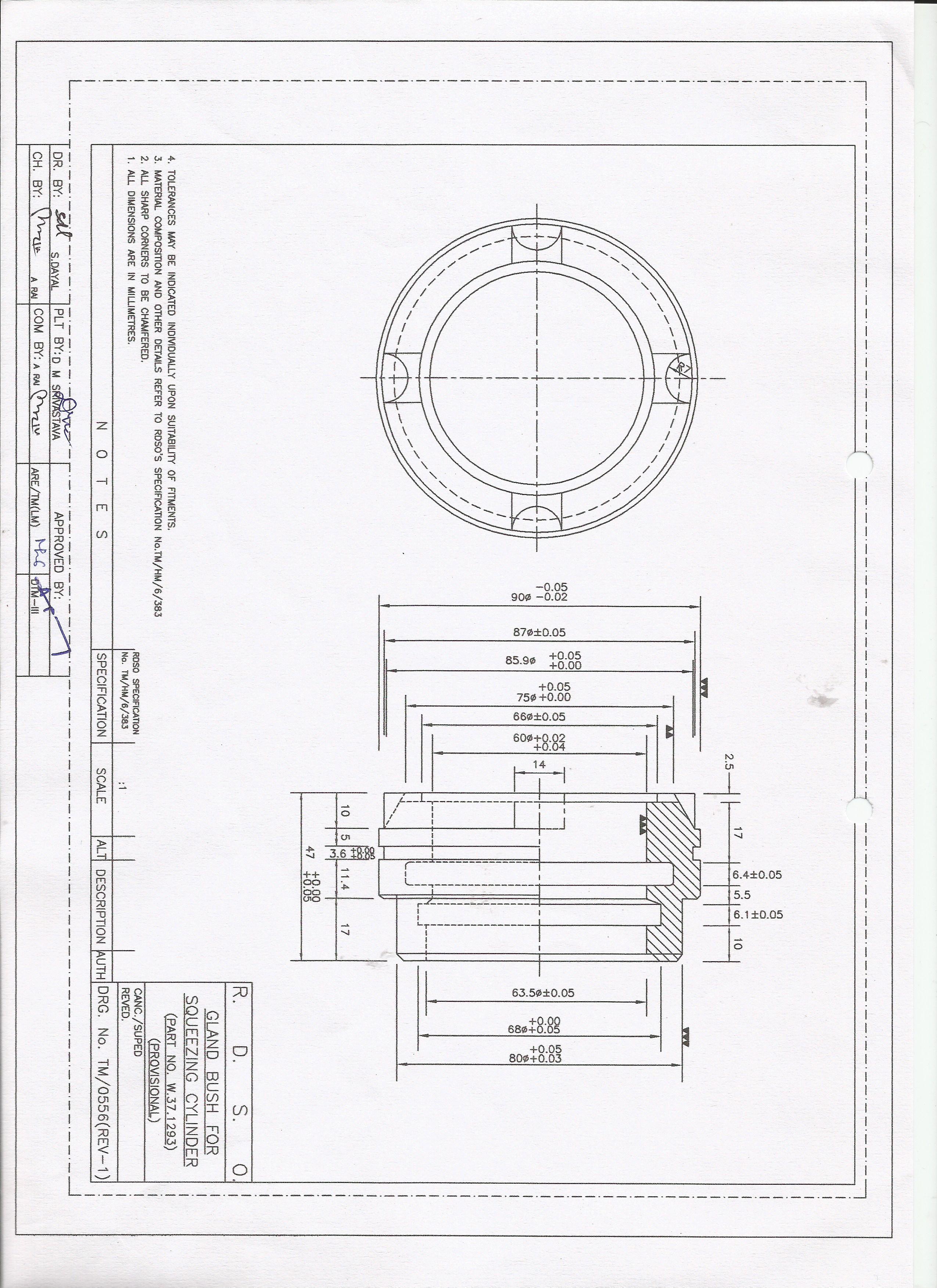

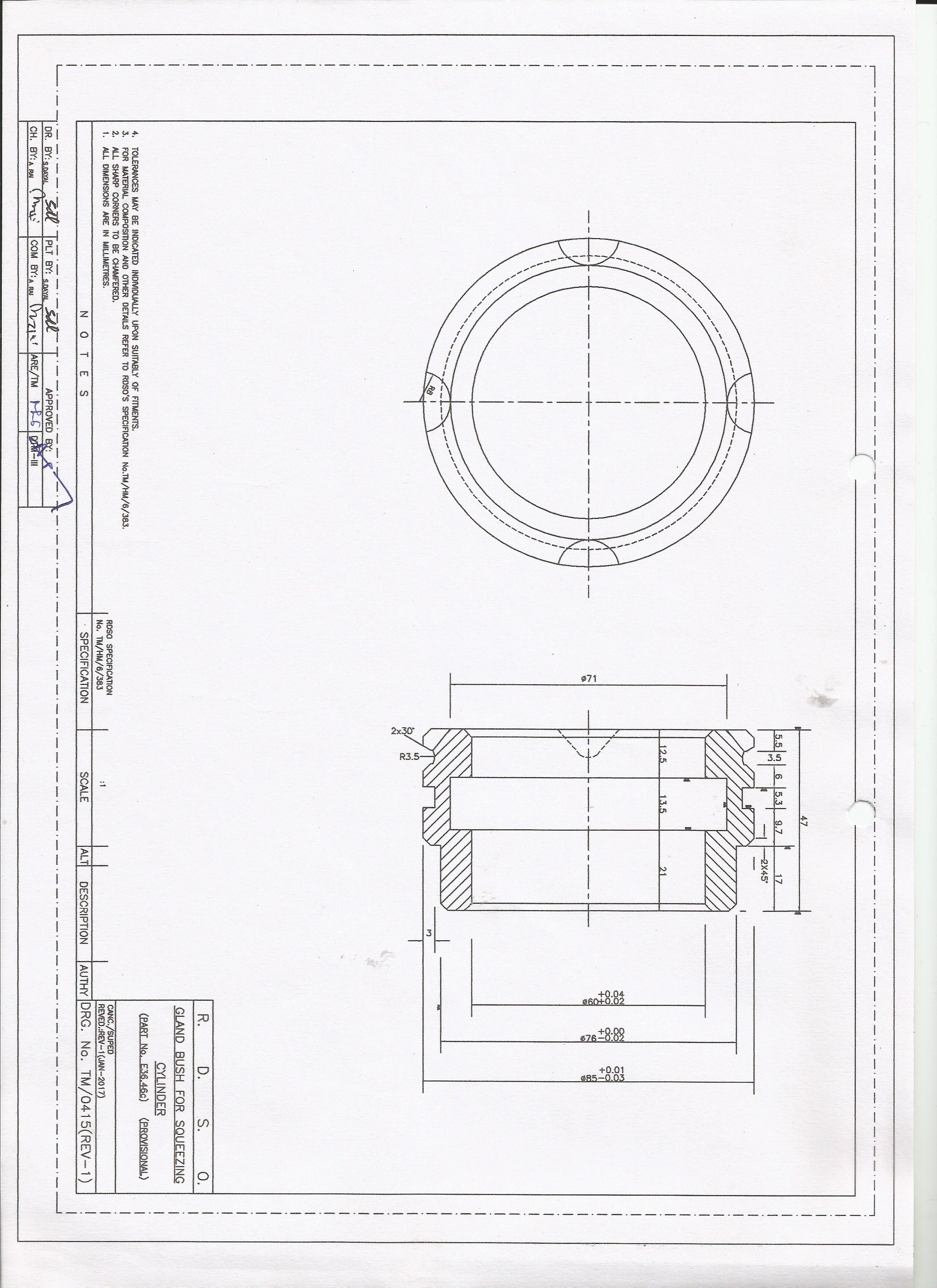

Gland bush for squeezing cylinder of UNIMAT
(Part No. 2E.36.46C)
|
|
|
|
4.
|
Guide rod bush (Part No. DL12.06)
|
|
|
|
5.
|

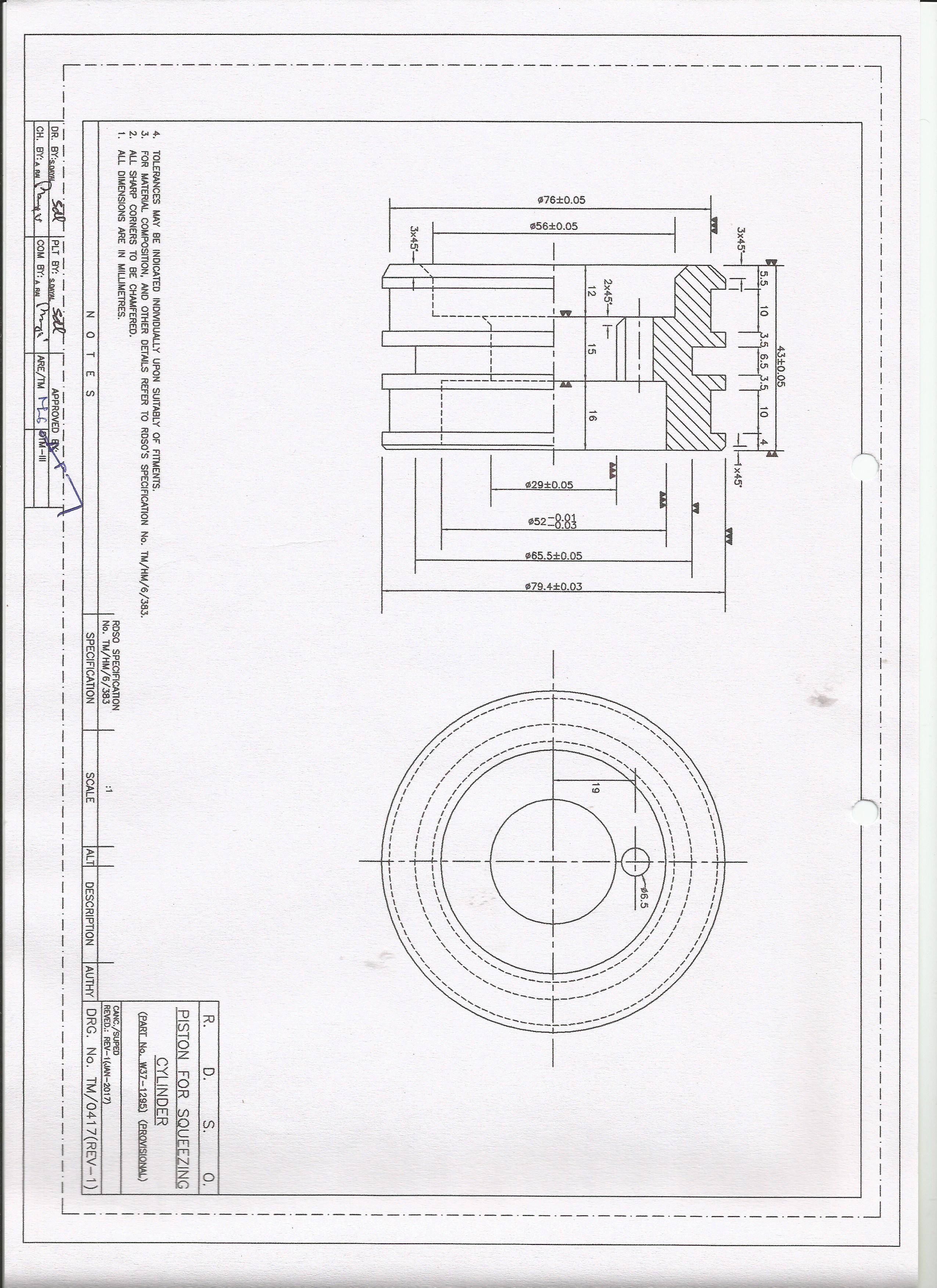

Piston for squeezing cylinder of UNIMAT
(Part No. W.37.1295)
|
|
|
|
6.
|

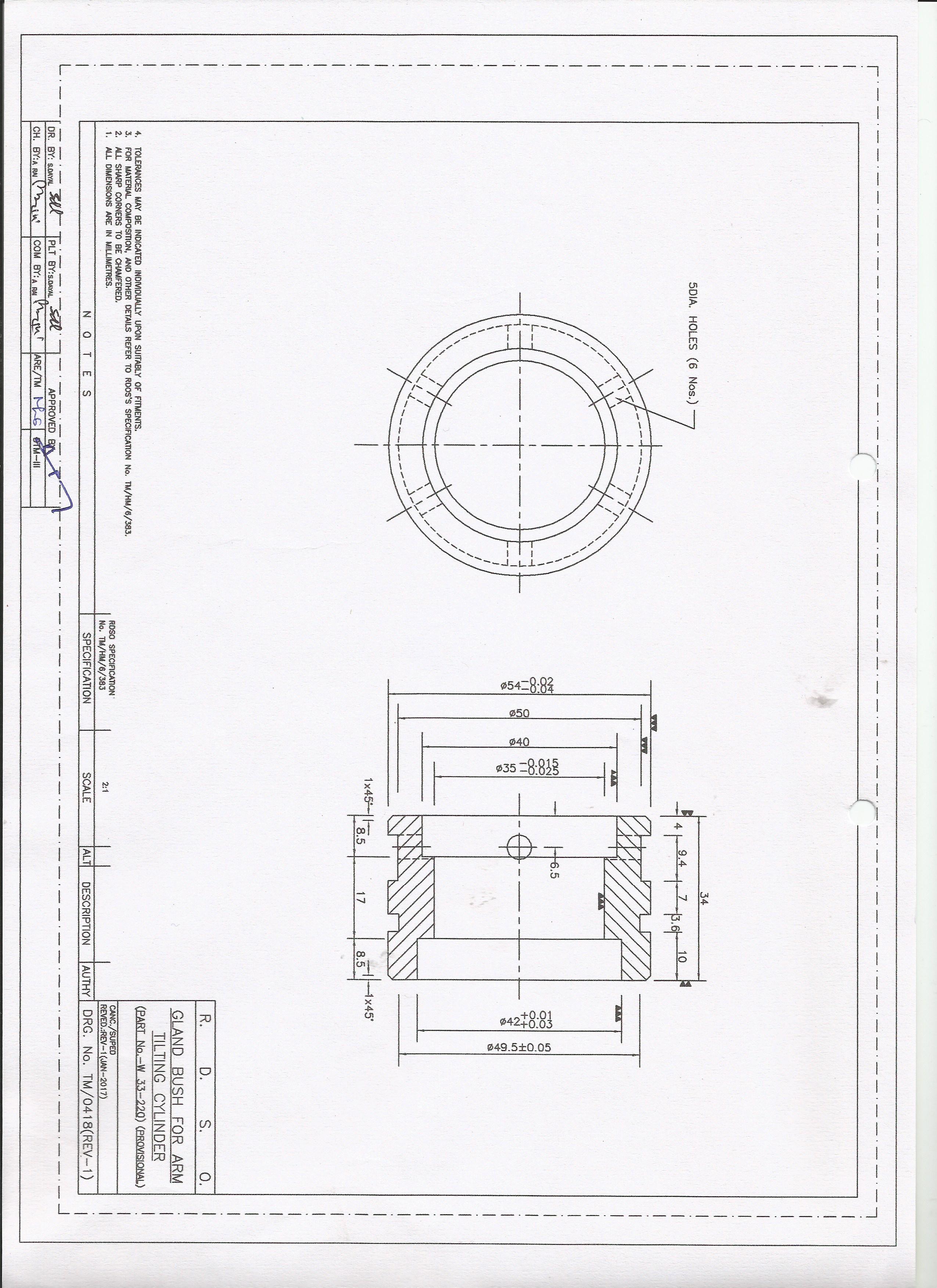

Gland bush for arm tilting cylinder of UNIMAT
(Part No. W.33.220)
|
TM/HM/6/383 |
|
|
7.
|

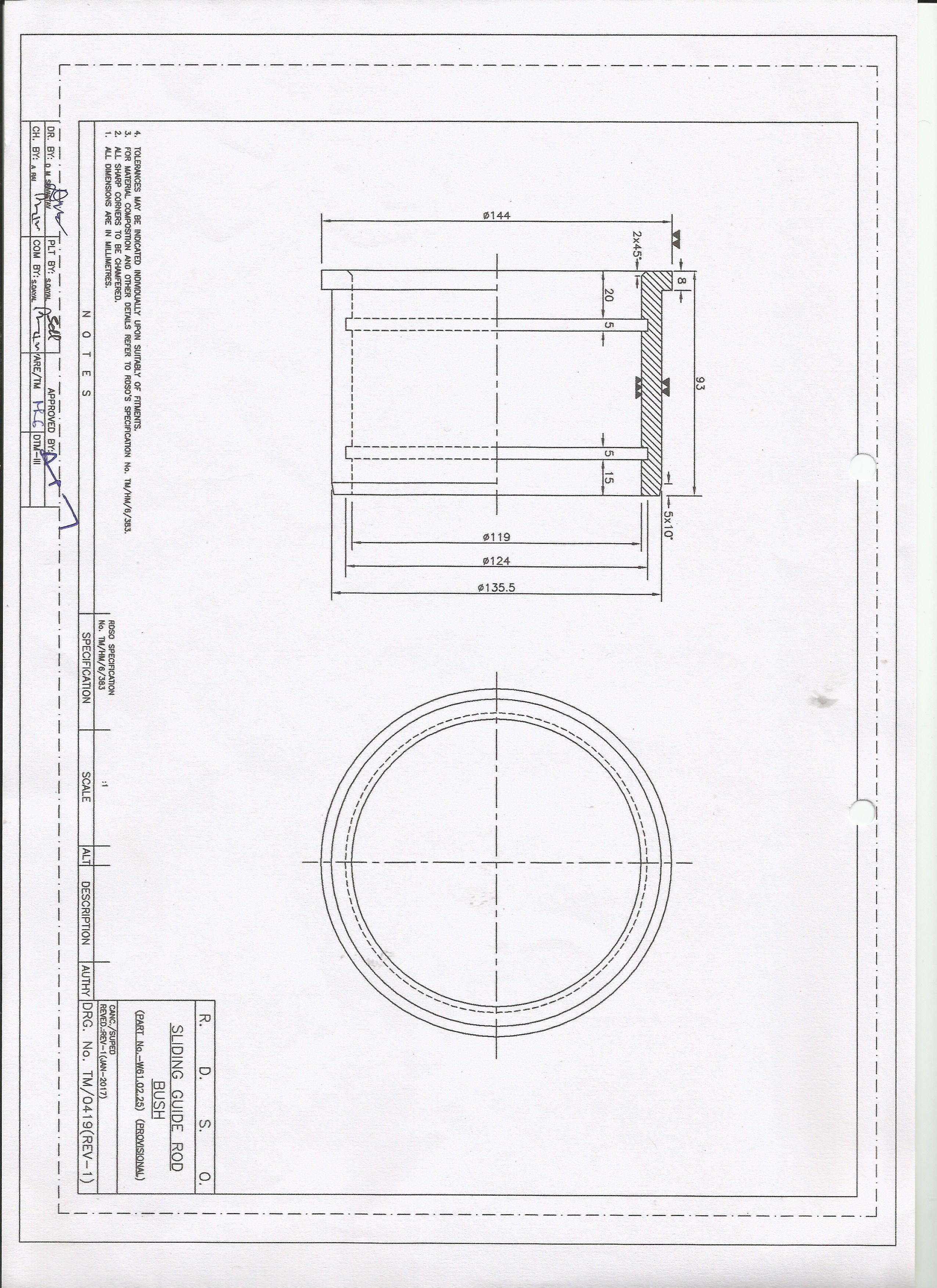

Sliding guide rod bush for DUO/CSM/UNIMAT
(Part No. W.61.02.25)
|
TM/HM/6/383 |
|
|
8.
|
Cover plate for tool tilting cylinder of UNIMAT
(Part noW33.1143)
|
|
|
|
9.
|
Spacer Ring for tamping unit of Unimat -4S (Part no. W37.14407)
|
|
|
|
10.
|
Bolt and nut for tamping arm of tamping unit center bore (Part no. 2E .31.04)
|
|
|
|
11.
|
Cover for pivot bearing (Part no. DL. 10. 56)
|
|
|
|
12.
|
Bush for NJ219 bearing ( Part no.2E.22.09)
|
|
|
|
13.
|
Cover plate for tamping unit guide rod bush
( Part no.DL.12.05)
|
|
|
|
14.
|
Cover ( Part no.DL.12.51)
|
|
|
|
15.
|
Guide rod for tamping unit ( Part no.E.6203)
|
|
|
|
16.
|
Top bearing plate for guide rod ( Part no.E.61.05)
|
|
|
|
17.
|
Bottom bearing plate for guide rod ( Part no.E.61.04)
|
|
|
|
18.
|
Sleeve for tamping unit( Part no.G20.26B)
|
|
|
|
19.
|
Castle nut for vibration shaft ( Part no.2E.22.36)
|
|
|
|
20.
|
Connecting rod for tamping unit ( Part no.G20.13)
|
|
|
|
21.
|
Sleeve for roll clamp ( Part no.DL 150.02)
|
|
|
|
22.
|
Box bearing ( Part no.Dl.23.103)
|
|
|
|
23.
|
Pin for clapper cylinder ( Part no.E36.63A)
|
|
|
|
24.
|
Spacer ring for vibration shaft ( Part no.2E223.01A)
|
|
|
|
25.
|
Spacer ring for vibration shaft ( Part no.Dl.23.107)
|
|
|
|
26.
|
Spacer ring for vibration shaft ( Part no.2E22.04A)
|
|
|
|
27.
|
Spacer ring for vibration shaft ( Part no.Dl.23.108)
|
|
|
|
28.
|
Spacer ring for vibration shaft ( Part no.2E22.06)
|
|
|
|
29.
|
Spacer ring for vibration shaft ( Part no.2E.22.07)
|
|
|
|
30.
|
Spacer ring for vibration shaft ( Part no.2E.22.12)
|
|
|
|
31.
|
Spacer ring for vibration shaft (Part no.2E.22.05A)
|
|
|
|
32.
|
Spacer ring for vibration shaft (Part no.2E.22.26)
|
|
|
|
33.
|
Pin with castle nut for torque support ( Part no.U61.104)
|
|
|
|
34.
|
Hex Nut (Part No DL.150.11.a)
|
|
|
|
35.
|
Pin for brake assembly (Part no UD.21`0.45)
|
|
|
|
36.
|
Toothed Coupling For Unimate (Part no E20.13c)
|
|
|
|
37.
|
Toothed Coupling For Unimate (Part no E20.13a)
|
|
|
|
38.
|
Fly Wheel Of Unimate (Part no E23.70a)
|
|
|
|
39.
|
Fly Wheel Of Unimate (Part no E23.70a)
|
|
|
|
40.
|
Cover plate for squeezing cylinder of unimate(Part noW37.1294)
|
|
|
|
41.
|
Piston Rod For Tool Tilting Cylinder (Part No W33.202A)
|
|
|
|
42.
|
Piston Rod For Tool Tilting Cy.l Of Unimate
(Part No W33.205)
|
TM/HM/6/383 |
|
|
43.
|
Tamping Unit Pin (Part no CU.37.632)
|
|
|
|
44.
|
Axle Bolt (Part no W.37.1410)
|
|
|
|
45.
|
Pin (Part no W.31.133A)
|
|
|
|
46.
|
Gland Bush For Squeezing Cyl. (Part no W37.1293)
|
TM/HM/6/383 |
|
|
47.
|
Bearing Bush (Part no CU.37.308)
|
|
|
|
48.
|
Bearing Bush (Part no 2W.31.205)
|
|
|
|
49.
|

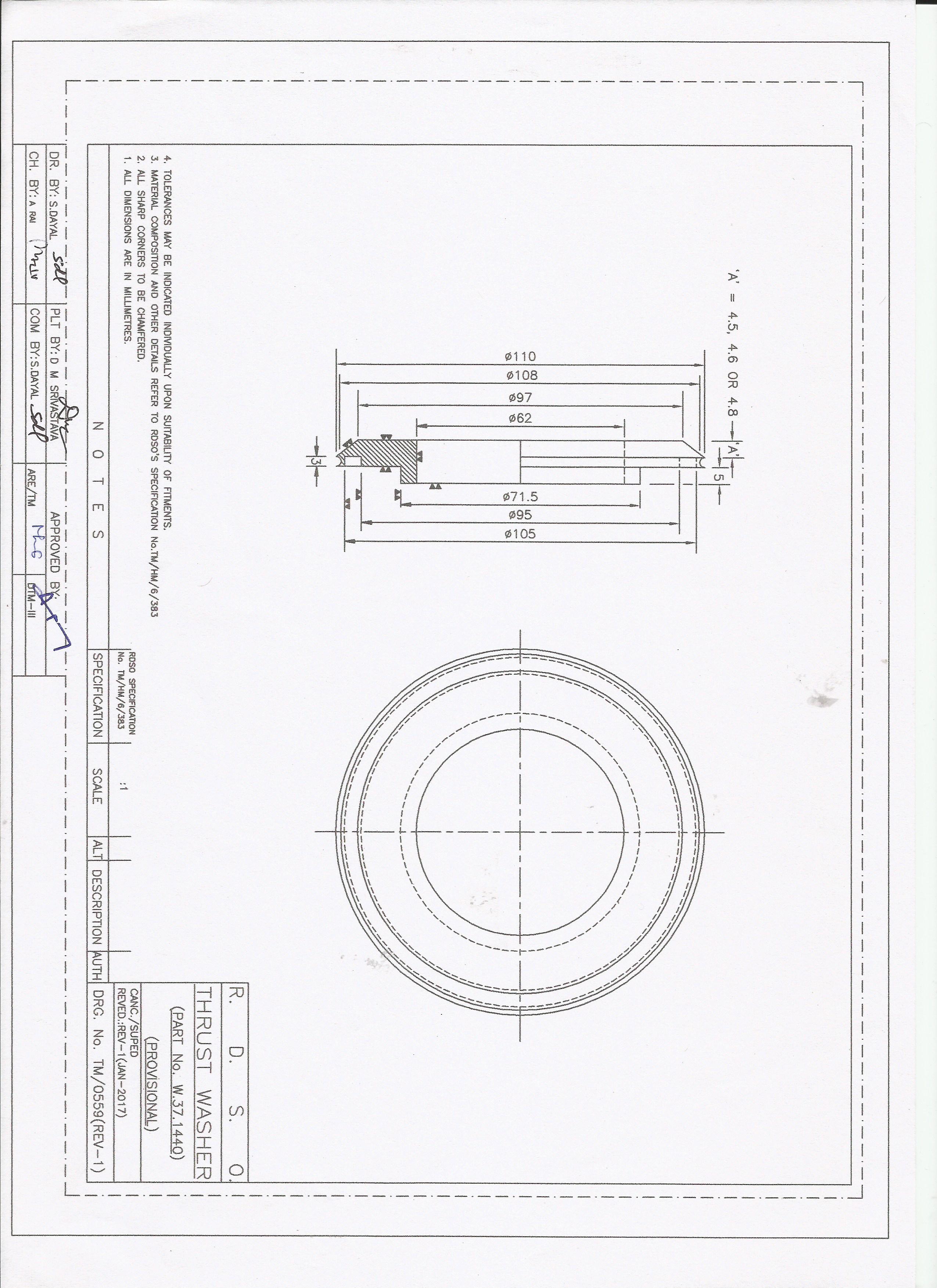

Thrust Washer (Part no W37.1440)
|
TM/HM/6/383 |
|
|
50.
|
Set Screw (Part no G.30.42)
|
|
|
|
51.
|
Guide Rod For Lifting Hook Sliding Unit -UNI
(Part no UD.313.1035)
|
|
|
|
52.
|
Piston Rod For Squeezing Cyl-Unimate
(Part no JT.30.06A)
|
|
|
|
53.
|
Bush (Part no W.33.159)
|
|
|
|
54.
|
Hook Sliding Guide Rod -3S (Part NoWN153.90.f6.945.1)
|
|
|
|
55.
|
Pin for Lever Clamp UNI-3S
(Part No WN105.50.h7.232.6.1 0)
|
|
|
|
56.
|
Pin for Unit Sliding Cylinder -3S
(Part No WN109.20.e85.55.2)
|
|
|
|
57.
|
Pin for Roller UNI-3S (Part No WN109.60.F8.147)
|
|
|
|
58.
|
Distributor Block of tamping unit of UNI
|
|
|
|
59.
|
Axle for wheel of lining trolley (Part No. 236.3001.8)
|
|
|
|
60.
|
Pin of Brake assembly ( Part No.UD.214.1020)
|
|
|
|
61.
|
Bolt For Brake assembly ( Part No.UD.214.1024)
|
|
|
|
62.
|
Hex Bolt Special (Part No. E60.08 Ass)
|
|
|
|
63.
|
Tube / Sleeve for Hook Sliding Cylinder of Unimat
(Part no. HZ09GB.050.0580.001)
|
|
|
|
64.
|
Piston Rod for Hook Sliding Cylinder of Unimat
(Part no. HZ10.050.025.0580. 1)
|
|
|
|
65.
|

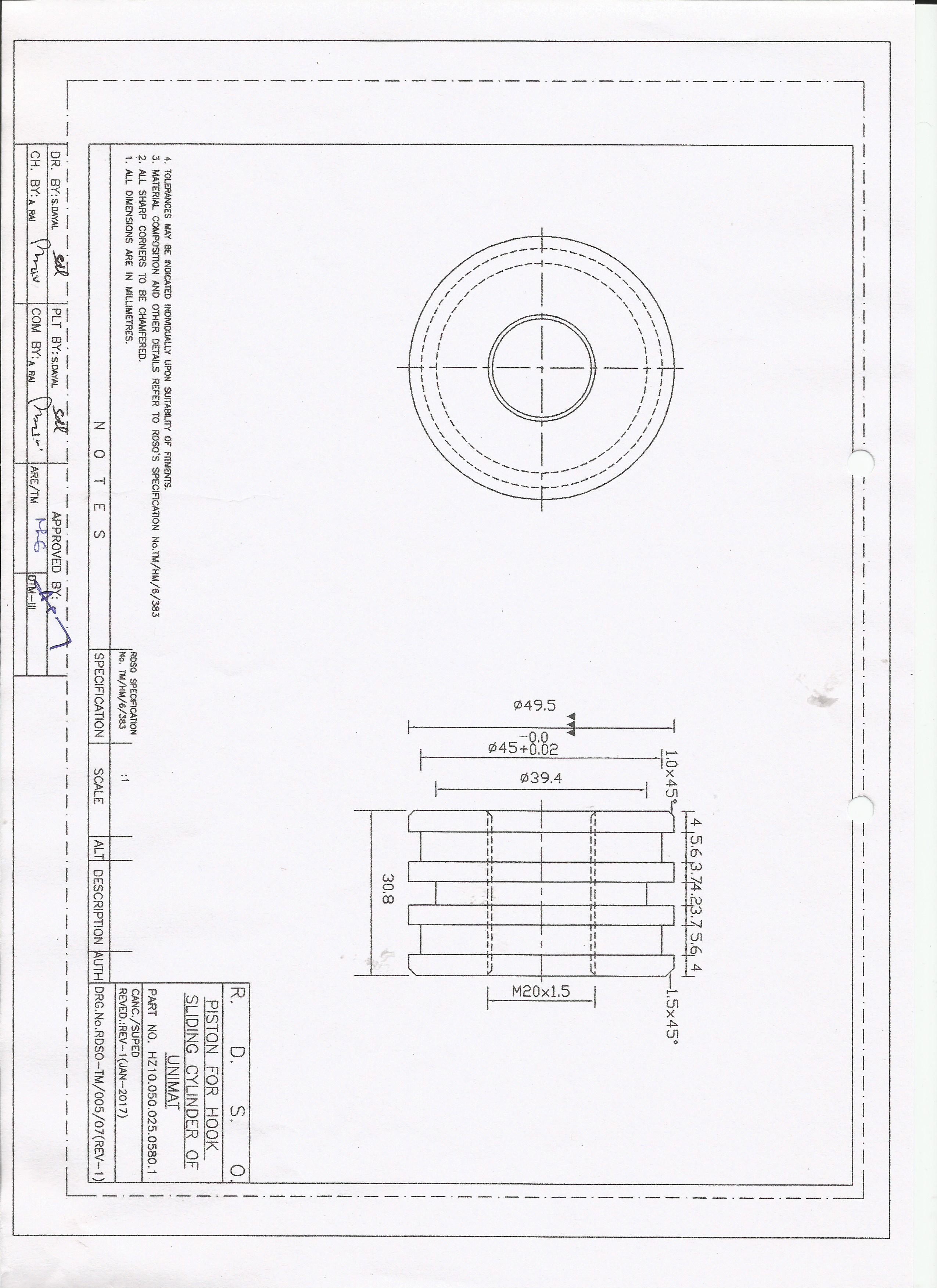

Piston for Hook Sliding Cylinder of Unimat
(Part no. HZ10.050.025.0580. 1)
|
TM/HM/6/383 |
|
|
66.
|
Pin with washer for Hook Sliding Cylinder of Unimat
(Part no. WN141.35H7.73.40.1)
|
|
|
|
67.
|
Support / Yoke for Hook Sliding Cylinder of Unimat
(Part no. UD313.1963)
|
|
|
|
68.
|
Gland for Hook Sliding Cylinder of Unimat
(Part no. HZ06.050.025)
|
|
|
|
69.
|
Squeezing Cylinder body (Male) Unimat.
(Part no. U.12.501)
|
|
|
|
70.
|
Squeezing Cylinder body (Female) Unimat.
(Part no. U.12.501)
|
|
|
|
71. |
Tool tilting cylinder body of Unimat.
(Part no. W33.201) |
TM/HM/6/319
Rev-1 |
RDSO/TM/01/12
Rev-1 |
|
72. |

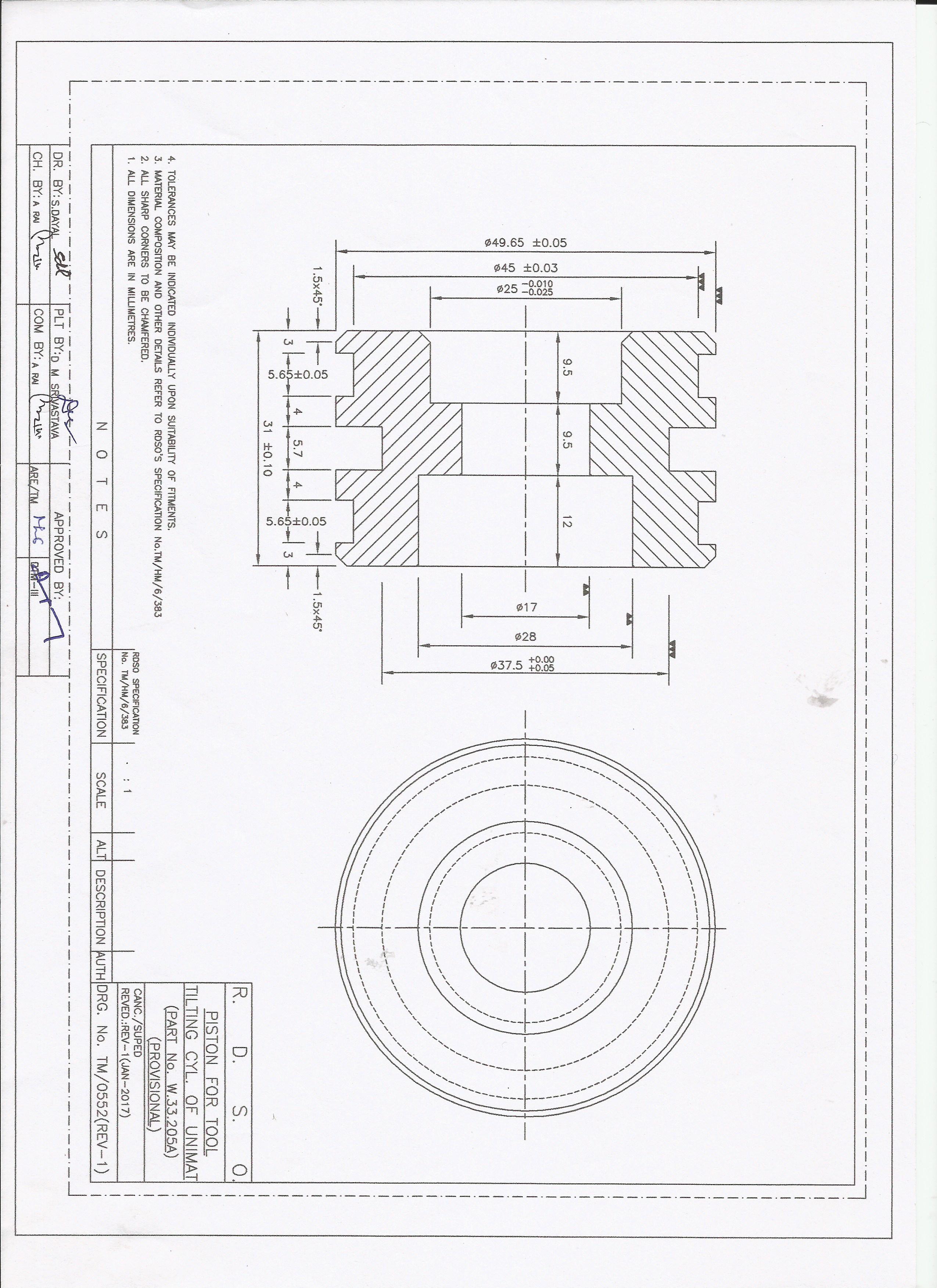

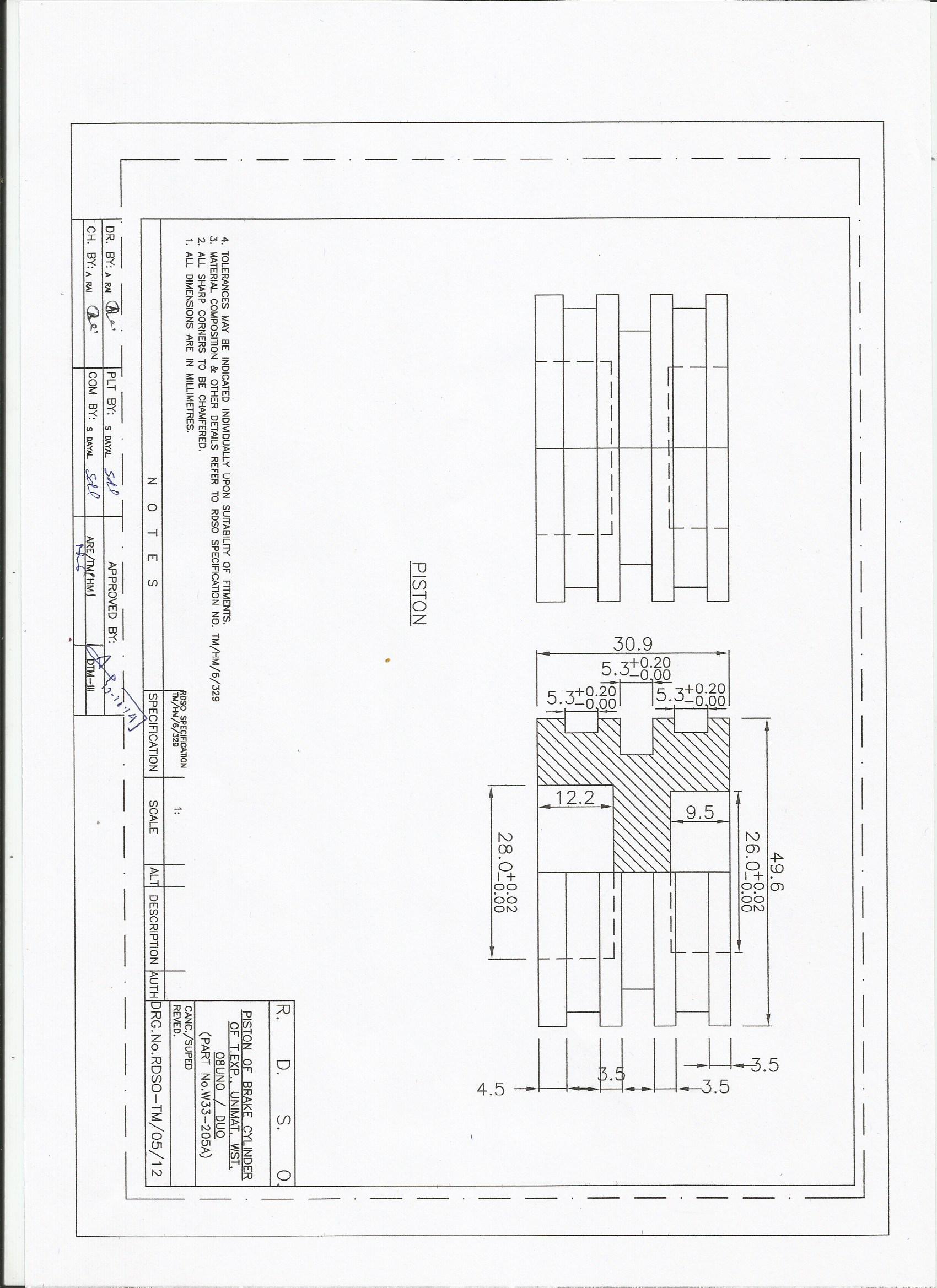

Piston for brake cylinder body
(Part no.W33.205A) |
TM/HM/6/383 |
RDSO/TM/05/12 |
|
73. |

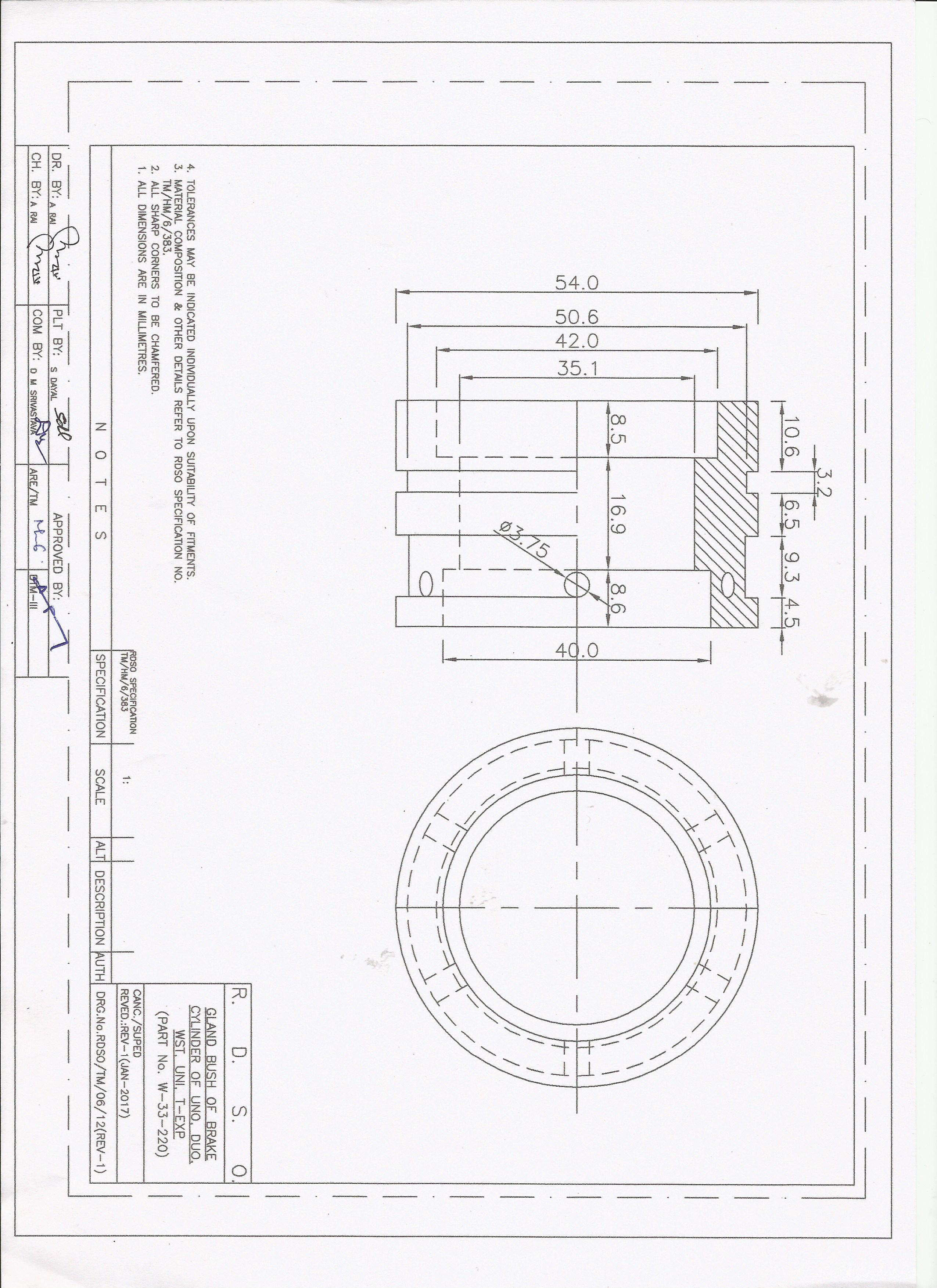

Gland bush for brake cylinder
(Part no. W33.220) |
TM/HM/6/383 |
RDSO/TM/06/12
(Rev.1) |
|
74. |

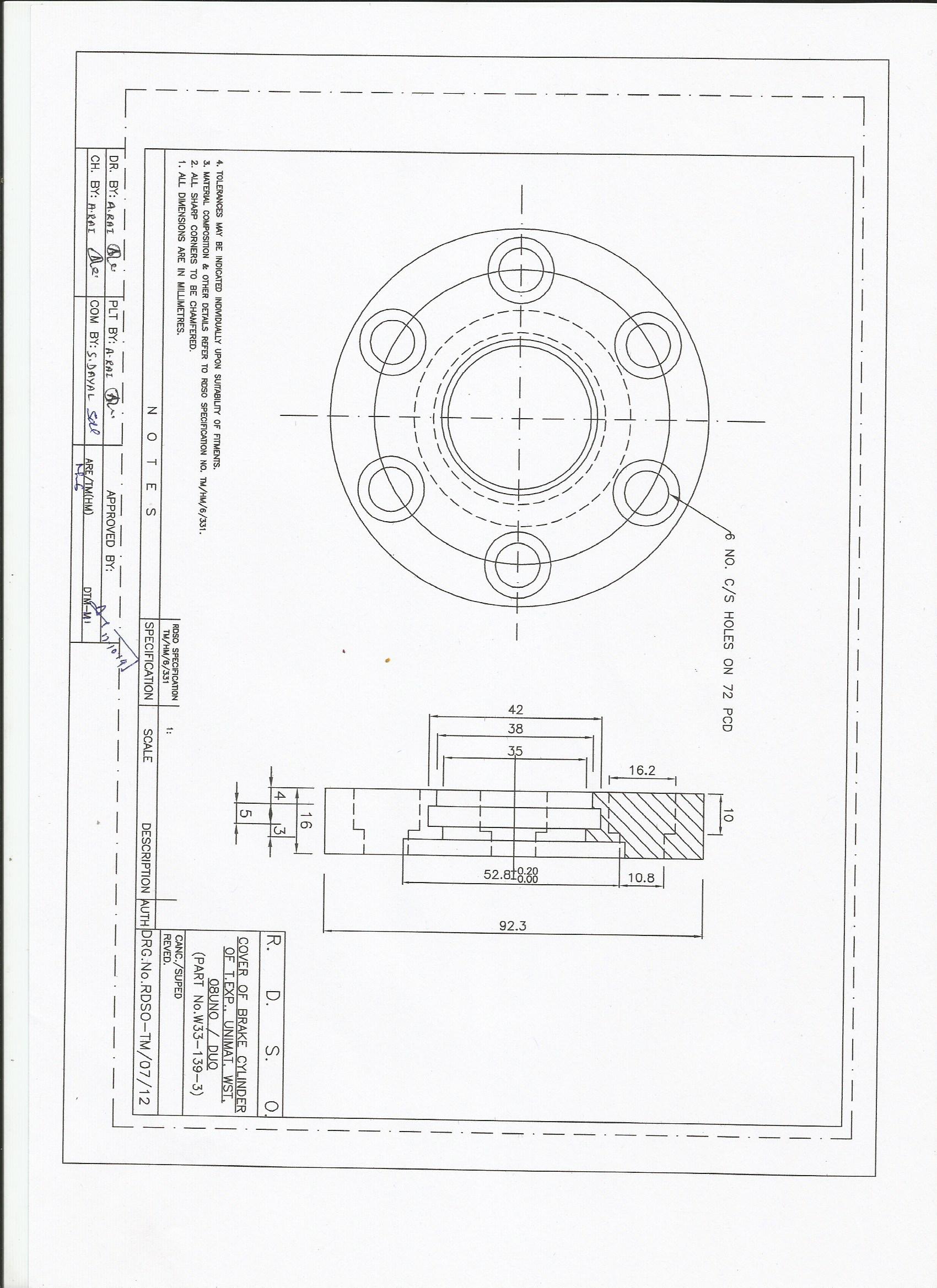

Cover for brake cylinder
(Part no. W33.139.3) |
TM/HM/6/331 |
RDSO/TM/07/12 |
|
75. |

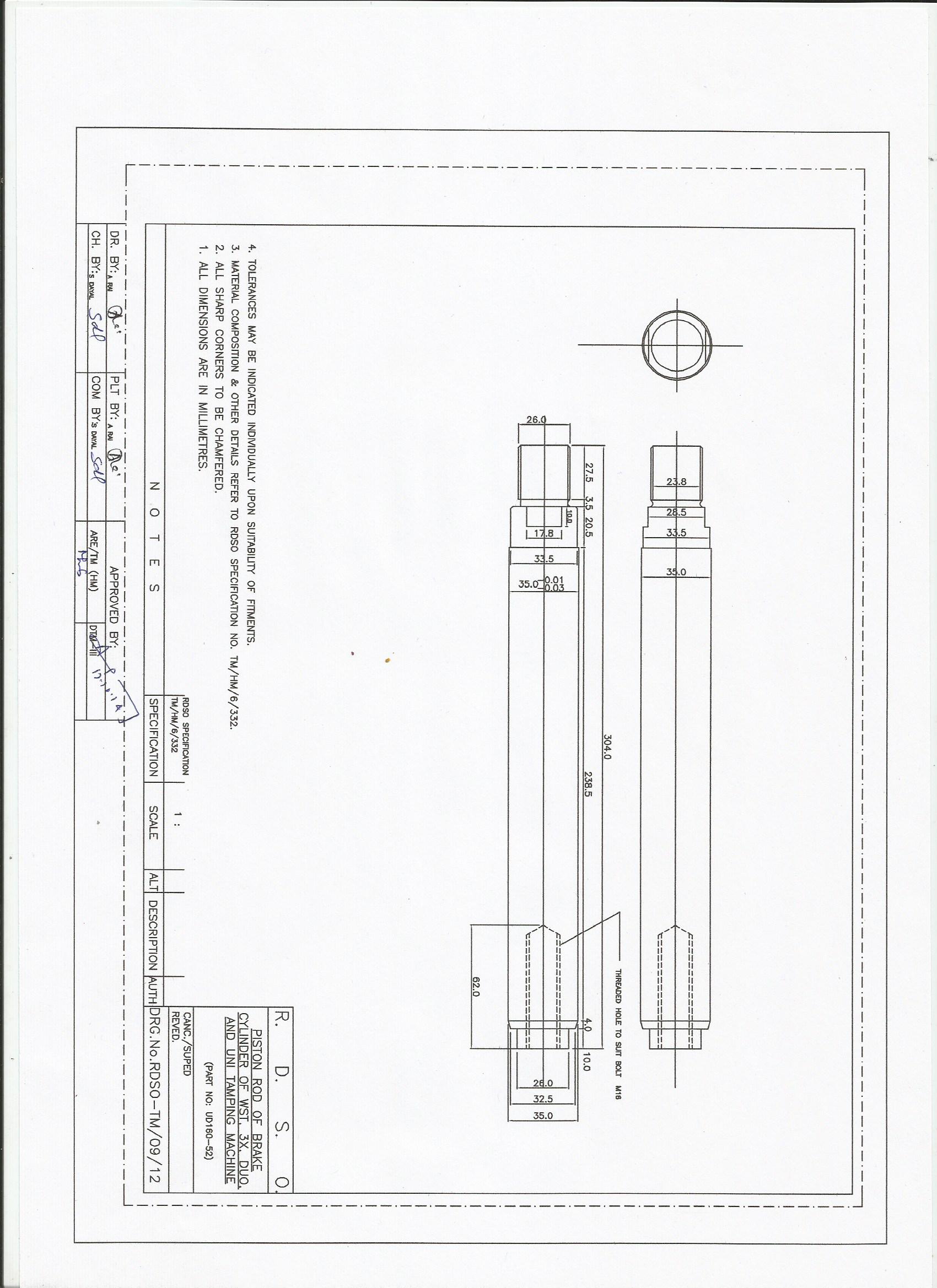

Piston rod for brake cylinder
(Part no. UD160.52) |
TM/HM/6/332 |
RDSO/TM/09/12 |
|
76. |

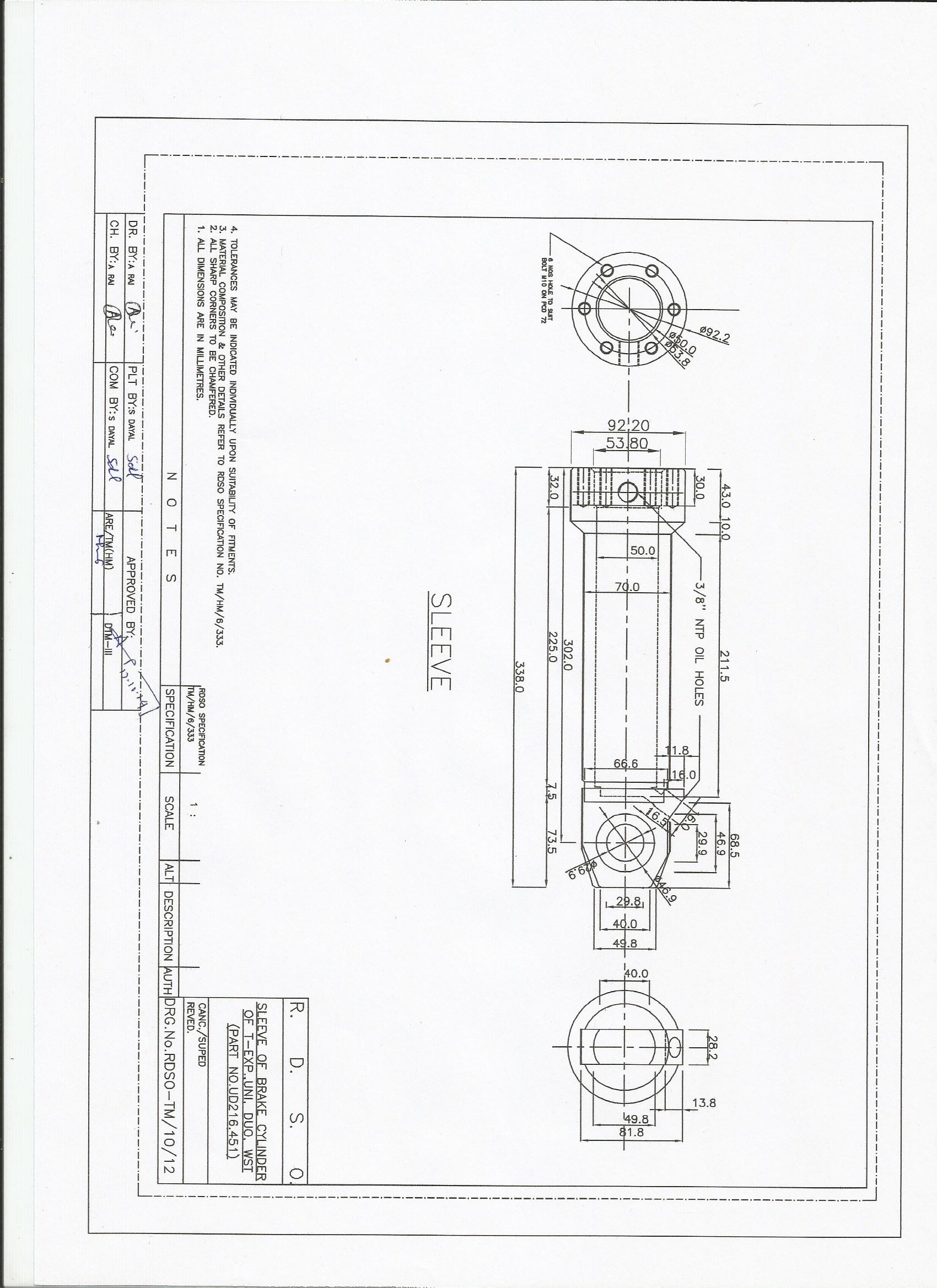

Sleeve for brake cylinder
(Part no. UD216.451) |
TM/HM/6/333 |
RDSO/TM/10/12 |
|
77.
|
Tamping tool for UNIMAT
|
|
|
|
78. |

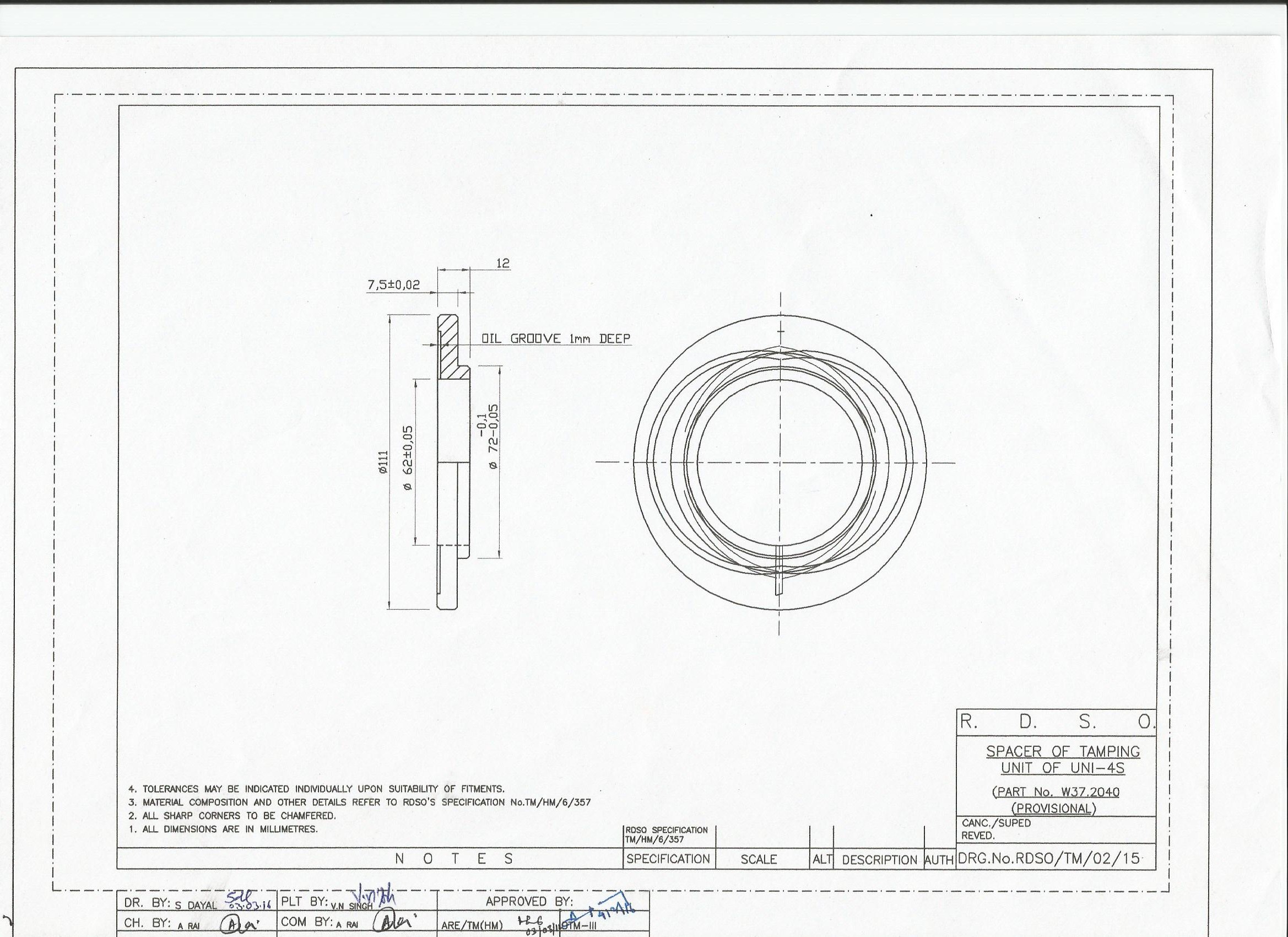

SPECIFICATION OF SPACER RING FOR TAMPING UNIT OF UNIMAT 08-475 4S
(Part no. W37.2040) |
TM/HM/6/357 |
RDSO/TM/02/15 |
|
79. |

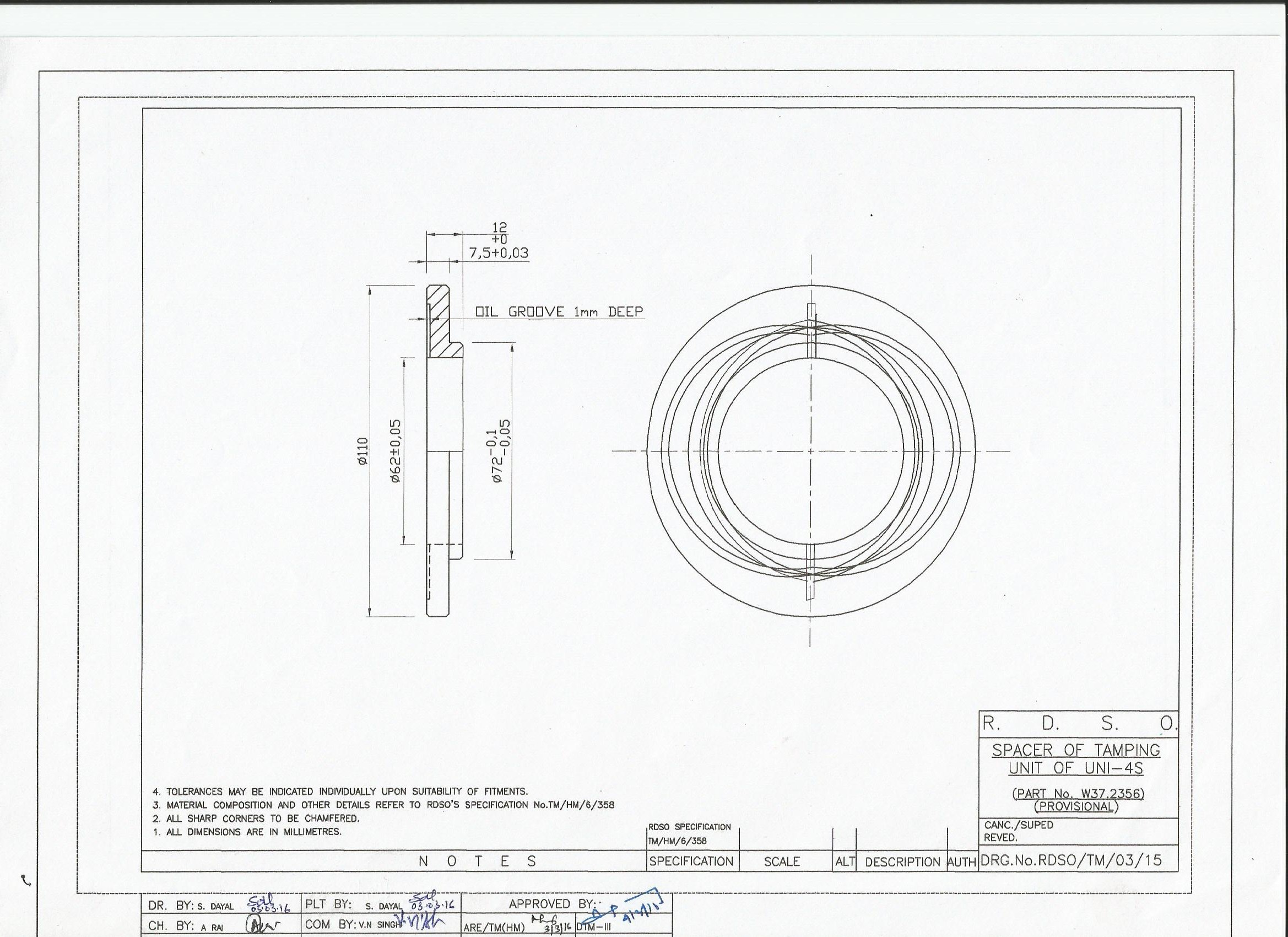

SPECIFICATION OF SPACER RING FOR TAMPING UNIT OF UNIMAT 08-475 4S
(Part No. W37.2356) |
TM/HM/6/358 |
RDSO/TM/03/15 |
|
80. |
SPECIFICATION OF SPACER RING FOR TAMPING UNIT OF UNIMAT 08-475 4S
(Part no. W37.2355 |
TM/HM/6/359 |
RDSO/TM/04/15 |
|
81. |

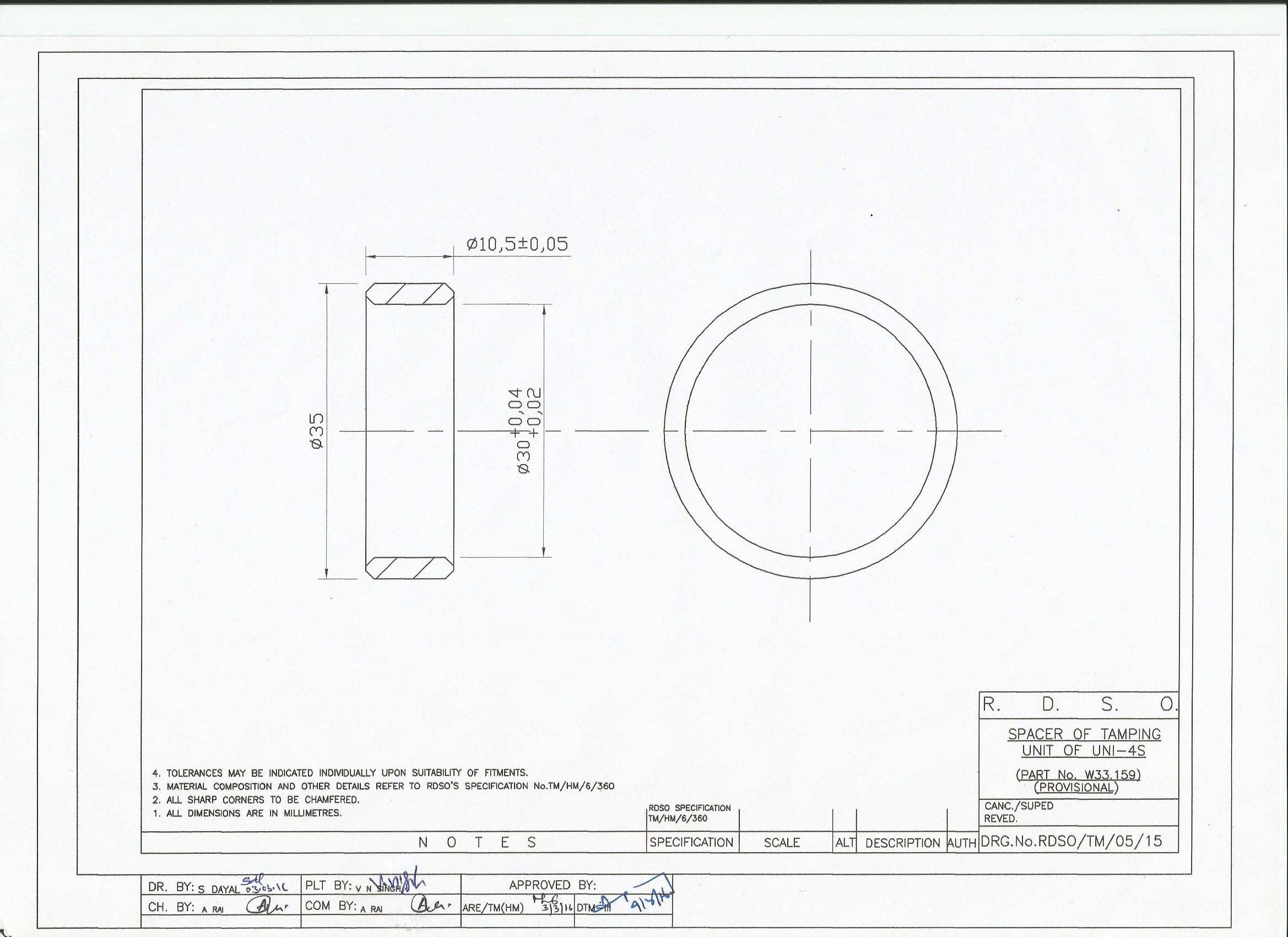

SPECIFICATION OF SPACER RING FOR TAMPING UNIT OF UNIMAT 08-475 4S
(Part no. W33.159 |
TM/HM/6/360 |
RDSO/TM/05/15 |
|
82. |
SPECIFICATION OF BOLT FOR TAMPING UNIT OF UNIMAT 08-475 4S
(Part no.W37.2382)
(Provisional |
TM/HM/6/361 |
RDSO/TM/06/15 |
|
83.
|
Tungsten Carbide Tip Tamping Tool (TCTT) for On-Track Tamping Machnines |
|
RDSO/TM/15B/16
RDSO/TM/15C/16
RDSO/TM/15D/16
RDSO/TM/15E/16
RDSO/TM/14A/16
RDSO/TM/14B/16
RDSO/TM/14C/16
RDSO/TM/14D/16
RDSO/TM/01A/16
RDSO/TM/01B/16
RDSO/TM/01C/16
|
|
84. |
Pin, Nut and Washer of Tamping Unit of Unimat-4S (Part no.UD15.1231) |
TM/HM/6/378 |
RDSO/TM/01/17 |
|
85. |
Pin for rail clamp cylinder of Unima
(Part no.WN107.20h7.71.5.1)
|
TM/HM/6/389 |
RDSO/TM/07/17 |
|
86. |
Pin for rail clamp cylinder of Unimat
(Part no.WN107.20h7.84.6.3.2)
|
TM/HM/6/390 |
RDSO/TM/08/17 |
|
87. |
Cover plate for axle of Unimat
(Part no.UD71.1002)
|
TM/HM/6/391 |
RDSO/TM/09/17 |
|
88. |
Spacer for axle gear of Unimat
(Part no.UD64.1303)
|
TM/HM/6/392 |
RDSO/TM/10/17 |
|
89. |
Semi finished bush for lifting hook of Unimat
(Part no.CU311.3020)
|
TM/HM/6/383 |
RDSO/TM/14/17 |
|
90. |
Semi finished bush for lifting hook guide rod of Unimat (Part no.CU311.3019) |
TM/HM/6/383 |
RDSO/TM/15/17 |
|
91. |
Pivot for driving bogie of Unimat(Part no.UD61.2631)
|
TM/HM/6/397 |
RDSO/TM/17/17 |
|
92. |
Knuckle joint with bolt of Unimat (Part No. UD311.1205) |
TM/HM/6/404 |
RDSO/TM/19/17 Rev-1
|
|
93.
|

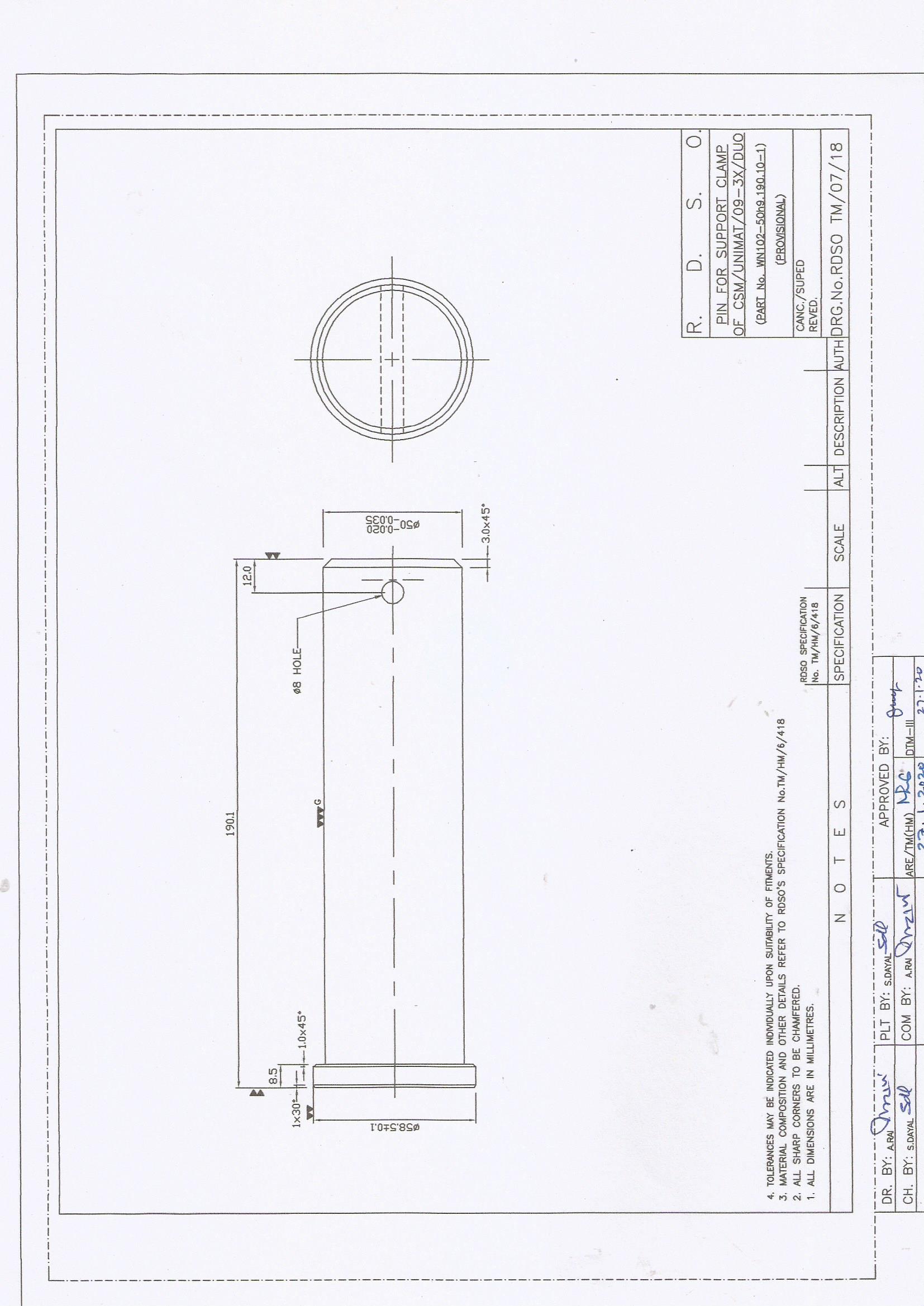

Pin for Support Clamp of CSM/UNIMAT/09-3X/DUO
(Part No. WN102-50h9.190.10-1)
|
TM/HM/6/418
|
RDSO/TM/07/18
|
|
94
|
Cover disc for vibration drive of Unimat-4S (Part No/ CU20.216)
|
TM/HM/6/439
|
RDSO/TM/15/19
|
|
95
|
Tamping arm left of Unimat
(part no. W37.1702) |
TM/HM/6/443
|
RDSO/TM/03/20
|
|
96
|
Tamping arm right of Unimat
(part no. W37.1461) |
TM/HM/6/444
|
RDSO/TM/04/20
|
|
97 |
Tool holder for tamping unit of Unimat
(part no. CU37.603) |
TM/HM/6/462
|
RDSO/TM/08/20 |
|
98 |
Swivel Bearing Right for Tamping Unit of Unimat-4S. (Part no. UD15.1212). |
TM/HM/6/463
|
RDSO/TM/09/20 |
|
99
|
Angular Movement Cylinder of Tamping Unit for Unimat.
(part no. HZGB.063.036.0305.1)
|
TM/HM/6/445
|
RDSO/TM/05/20 (1OF2)
RDSO/TM/05/20 (2OF2) |
|
100
|
Hook Displacement Cylinder of lifting unit for Unimat.
(Part No. HZGB.050.025.0580.1.001) |
TM/HM/6/446
|
RDSO/TM/06/20 (1OF3)
RDSO/TM/06/20 (2OF3)
RDSO/TM/06/20 (3OF3)
|
|
101
|
Hydraulic Lining Cylinder for Unimat
(Part No. HZMB.100.045.0540.2.001) |
TM/HM/6/471
|
RDSO/TM/11/20 (1OF2)
RDSO/TM/11/20 (2OF2)
|
|
102
|
Track Lifting Cylinder for Unimat-3S & 4S
(Part No. HZGB.125.050.0435.1.001) |
TM/HM/6/473
|
RDSO/TM/13/20 (1OF2)
RDSO/TM/13/20 (2OF2) |
|
103 |
Vibration shaft for Vibration Drive of Unimat (Part no. CU20.301)
|
TM/HM/6/481
|
RDSO/TM/18/20
|
|
104
|
Lifting unit axial movement cylinder of Unimat-3S
(Part no. HZMB.063.040.0410.1.001)
|
TM/HM/6/486
|
RDSO/TM/01/21
|
|
105
|
Tamping unit sliding cylinder of Unimat
(Part no. HZGB.063.036.0580.1) |
TM/HM/6/487
|
RDSO/TM/02/21(1OF2)
RDSO/TM/02/21(2OF2)
|
|
106
|
Swivel bearing for tamping unit of Unimat-4S (Part no. UD15.1211)
|
TM/HM/6/490
|
RDSO/TM/05/21
|
|
107
|
Swivel bearing for tamping unit of UNI-3S
(Part no. W37.1301)
|
TM/HM/6/502
|
RDSO/TM/18/21
|
|
108
|
Swivel bearing right for tamping unit of UNI-3S (Part no. W37.1302)
|
TM/HM/6/503
|
RDSO/TM/19/21
|
|
109 |
Tamping Arm of Unimat
(Part no. W37.1703)
|
TM/HM/6/500 |
RDSO/TM/15/21 |
|
110 |
Piston Rod for Tamping Cylinder of Unimat
(Part No. W37.2054B)
|
TM/HM/6/501 |
RDSO/TM/16/21 |
|
111 |
Tool Holder right for tamping unit of Unimat (Part no. CU37.604)
|
TM/HM/6/504
|
RDSO/TM/20/21
|
|
112
|
Bearing bush for distributor gear of CSM, UNI & T-Exp (Part no. UD64.906)
|
|
|
|
113
|
Pin for hydraulic cylinder of Unimat
(Part no. WN102.30h8.99.8.1)
|
|
|
|
114
|
Pin for hydraulic cylinder of Unimat
(Part no. WN107-20e.870.5.5.2)
|
|
|
|
115
|
Round rubber pad for T-Exp, Unimat & Duomatic (Part no. 40X30M10)
|
|
|
|
116
|
Round rubber pad for T-Exp, Unimat & CSM
(Part no. 60X40M12)
|
|
|
|
117
|
Distributor block of Unimat-4S
(Part no.DL90.53A)
|
|
|
|
118
|
Hydraulic distributor block of Unimat-2S/3S
(Part no. DL90.53)
|
|
|
|
119
|
Round unit for tamping unit lifting/lowering cylinder of CSM,DUO,09-3X & Unimat
(Part no.UD66.3273-I)
|
|
|
|
120
|
Bearing flange for vibration drive of DUO,CSM and UNI-2S/3S
(Part no.DL23.104)
|
|
|
|
121
|
Tool holder for tamping unit of unimate-2S/3S
(Part no. CU37.503)
|
|
|
|
122
|
Tool holder for tamping unit of unimate-2S/3S
(Part no. CU37.504)
|
|
|
|
123
|
Tamping arm for unimate-4S
(Part no. W37.1462)
|
|
|
|
124
|
Guide rod for tamping unit
(Part no. WN153.82f7.1340.01)
|
|
|
|
125
|
Squeezing Cylinder body (Male) of Unimat-4S
(Part no.W37.2052)
|
|
|
|
126
|
Squeezing Cylinder body (Female) of Unimat-4S
(Part no.W37.2053)
|
|
|
|
127
|
Connecting Piece for Vibration drive of Unimat-4S
(Part no. CU20.103)
|
|
|
|
128 |
Coupling Cover for tamping unit of Unimat -2S/3S (Part no. E120.13B) |
TM/HM/6/541 |
|
|
129
|
Fly wheel for tamping unit of Unimat -4S (Part no. CU20.302)
|
|
|
|
130
|
Shaft for working drive of Unimat (Part no.UD63.1004)
|
|
|
|
131
|
Pin for Measuring Bogie of Unimat-3S
(Part no. UD210.17)
|
|
|
|
132
|
Pin for Track Lining cylinder of Unimat, CSM & Duomatic Machines (Part no.DL310.09)
|
|
|
|
133 |
Eccentric vibration shaft of Unimat
(Part no.DL23.102.2)
|
TM/HM/6/551
|
RDSO/TM/01/24
|
|
134 |
Piston rod complete of hook UP/DN cylinder for Unimat (Part no. HZ10.080.045.0350.2) |
TM/HM/6/554
|
RDSO/TM/04/24
|
|
135 |
Piston rod complete of lining cylinder for Unimat-2S (Part no. HZ10.100.045.0500.2) |
TM/HM/6/555
|
RDSO/TM/05/24
|
|
136 |
Piston rod complete of Bogie tension cylinder for Unimat (Part no. HZ10.080.036.0210.2) |
TM/HM/6/556
|
RDSO/TM/06/24
|
|
137 |
Pin for hydraulic cylinder of Unimat
(Part no WN107-45h7.139.8.5.1) |
TM/HM/6/559
|
RDSO/TM/09/24
|
|
138 |
Pin for hydraulic cylinder of Unimat
(Part no WN107-25e8.70.5.5.1) |
TM/HM/6/560
|
RDSO/TM/10/24
|
|
139 |
Fork for Brake Cylinder of Unimat & T-Exp.
(Part no.UD214.1508)
|
TM/HM/6/561
|
RDSO/TM/11/24
|
|
140 |
Pin for Cabin Support cylinder of Unimat, CSM & T-Exp
(Part no UD61.852)
|
TM/HM/6/562
|
RDSO/TM/12/24
|
Search |
